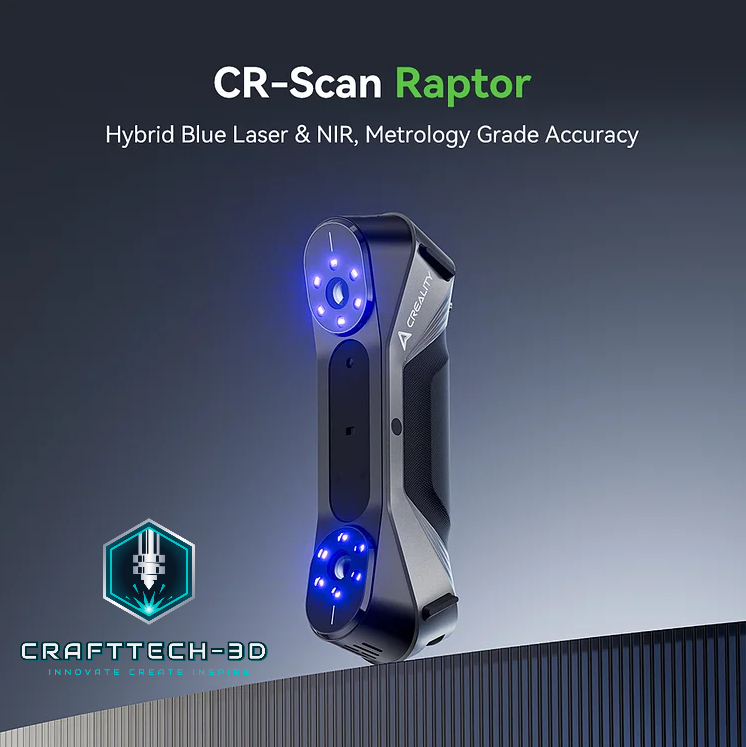

Creality CR-Scan Raptor 3D Scanner Hybrid Blue

Creality CR-Scan Raptor 3D Scanner Hybrid Blue

R 29,500.00
R 32,509.25 R 29,500.00
Sale Sold out
Shipping calculated at checkout.

The Creality CR-Scan Raptor 3D Scanner Hybrid Blue is an innovative and powerful scanning solution that combines portability with high-performance capabilities. Featuring advanced hybrid scanning technology, it offers both handheld and fixed-position scanning modes, allowing for versatile applications across various industries. With an impressive accuracy of up to 0.02mm and a large scanning range, the Raptor captures intricate details of objects quickly and efficiently. Its lightweight design ensures ease of use, while the user-friendly interface simplifies the scanning process for both beginners and professionals. Compatible with popular 3D modeling software, the CR-Scan Raptor is an ideal tool for designers, engineers, and hobbyists looking to create precise 3D models with ease.

  • Seven blue parallel laser lines for enhanced scanning precision
    - Metrology-grade accuracy of up to 0.02mm
    - Scanning speeds of up to 60 frames per second
    - Capable of scanning objects ranging from 5mm to 2000mm

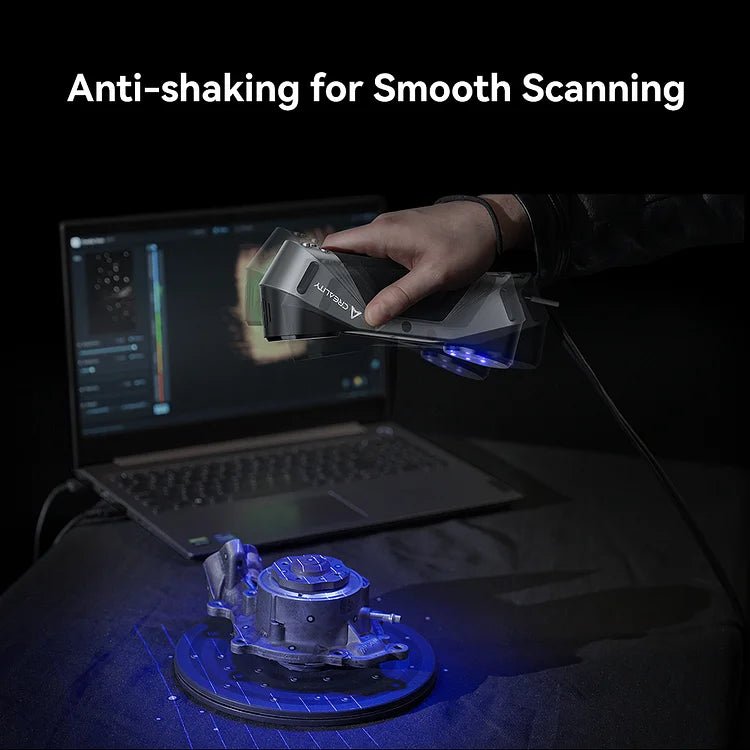

    - Anti-shake technology for seamless scanning experience
    - Can scan black and metallic surfaces without the need for sprays
    - 24-bit full-color scanning for rich detail
    - Lightweight and compact design (215mm x 50mm x 74mm), weighing only 372g
Scanning Mode: Blue Light(Blue 7-line laser) / NIR(infrared binocular structured light)
>>Blue Light(Blue 7-line laser) Mode:
Accuracy: Up to 0.02mm @ 100mm [1]
3D Resolution: 0.02-2mm
Scanning Speed: Up to 60fps
Min. scanvolume: 5mm x 5mm x 5mm
Single Capture Range: 270mmx170mm@300mm
Working distance: 150mm-400mm
Color Mapping: Yes
Alignment mode: Marker
>>NIR(infrared binocular structured light) Mode:
Accuracy：Up to 0.1mm
3D Resolution：0.1-2mm
Scanning Speed：Up to 20fps
Single Capture Range：930mmx580mm@1000mm
Working distance: 170mm-1000mm
Color Mapping: Yes
Alignment mode: Marker / geometry / texture
General Parameters:
3D imaging camera resolution: 1920x1200
Color Supplemental Light: 12 white LEDs
Marker Recognition Enhancement: 12 blue LEDs
Laser Safety: Class I (eye safe)
Button: Mechanical
IMU: Yes
Output format: OBJ/STL/PLY
Input Power: 12V 2A
Data interface: TypeC/USB3.0
Device Dimensions: 215mmx50mmx74mm
Device Weight: 372g
Calibration board: High-precision glass calibration board
Wireless Scanning: Supported in conjunction with future wireless scanning accessories
System Support：Windows/macOS
Operating temperature：-10°C to 40°C
Operating humidity: 0-90%RH
Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.
